Sockets for Prototyping with Actel FPGAs
Welcome to the Actel prototyping sockets page! Actel offers a range
of surface-mount sockets to make it easier for designers to prototype
their designs using Actel's one-time-programmable FPGAs.
These sockets are available in small quantities from Actel - just
contact your local Actel representative or distributor for pricing
and availability information. If you need quantities of 25 pieces
or more, please contact your local vendor's representative or distributor.
(For more information, see below)
You can download mechanical drawings of these prototyping sockets
by clicking on the drawing number.
Actel provides simple step-by-step assembly flow instructions for
attaching QFP and BGA sockets to a PCB. Also included is solder
reflow information along with a sample standard reflow temperature
profile.
Additional detailed information for prototyping sockets:
-
- EIA Standard Board Layout
drawing (3/5/99, 16kB pdf)
Socket Assembly Instructions for QFP
and BGA (Ball Grid Array) packages

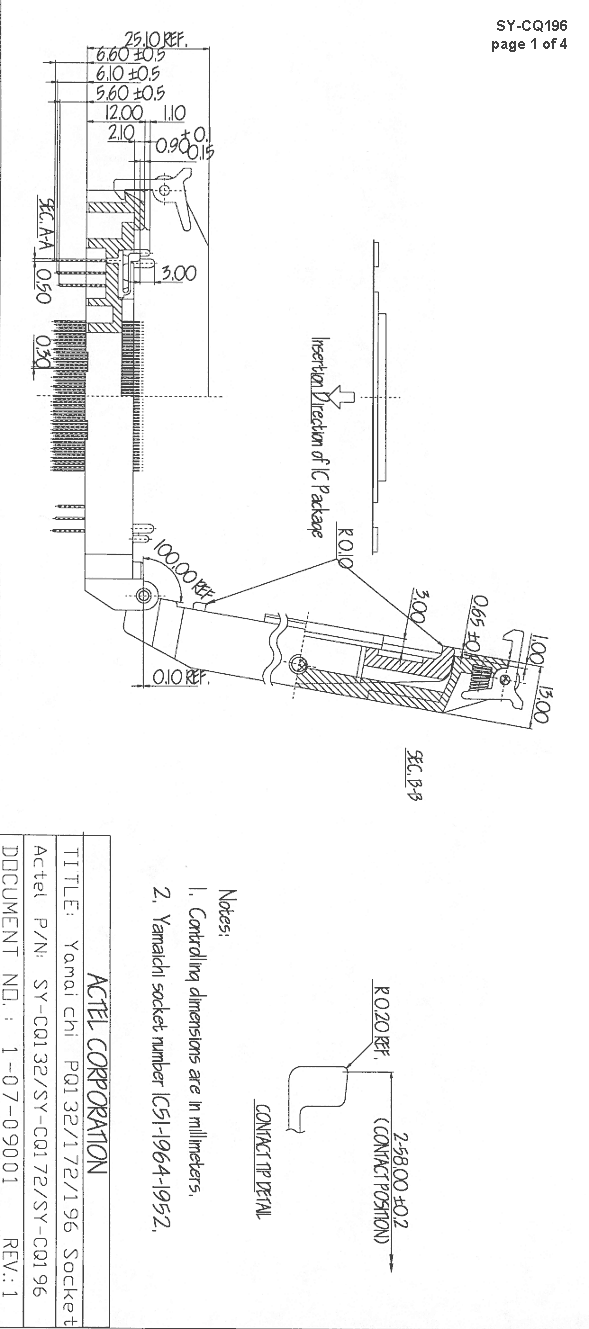

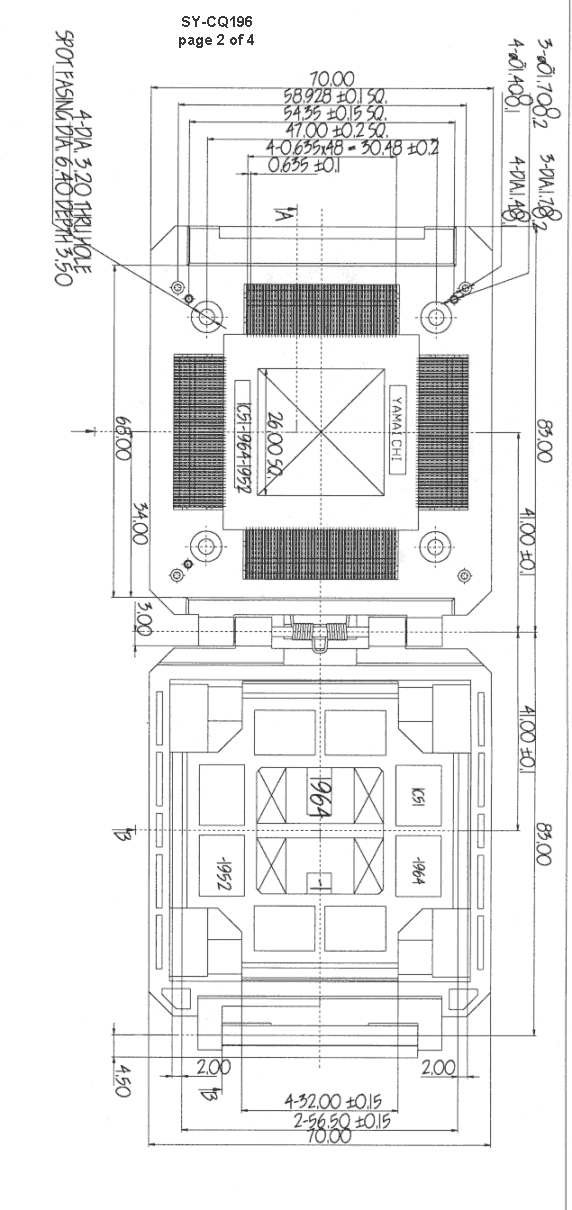

Mechanical Drawings for Prototype Socket
Note: If an existing board layout does not have the alignment
pin hole, the new SY-PQ and SY-VQ sockets can still be used by breaking
off the alignment pins.
For BGA sockets, please see socket drawing xx-BGxxx-AB to determine
which method is best to use.
If you have any questions relating to these sockets, please email
Ken O'Neill at Actel Product
Marketing (keno@actel.com).
For more detailed information on these sockets, including electrical
and material specifications, or to order production type and quantity
sockets, contact the specified manufacturer.
CTI:
- North America:
Tel: 1-602-581-5330
Fax: 1-602-780-3987
E-Tec Interconnect Ltd:
- CH-1606 Forel (Lavaux)
Switzerland
Tel: +41-21-781-0810
Fax: +41-21-781-0811
http://www.e-tec.ch
Email: chris@e-tec.ch
Mill-Max:
- http://www.mill-max.com
North America:
Tel: 1-516-922-6000
Fax: 1-516-922-9253
Yamaichi Electronics:
- http://www.yeu.com
North America: 1-408-456-0797
Japan: +81 3 3778 6111
Hong Kong: +852 2 687 1968
Germany: +49 89 451021 0
Italy: +39 39 688 1278
Korea: +822 2 548 5040
Singapore: +65 366 6522
Taiwan: +886 2 546 0507
PRC: 755 871 1784
|
