Xilinx-to-Altera Design Migration

The Quartus® II design software provides a complete and easy-to-use design environment for Altera® devices. AN 307: Altera Design Flow for Xilinx Users helps designers familiar with Xilinx software learn to perform FPGA design flows quickly using the Quartus II software and to begin targeting Xilinx designs to Altera devices.

Basic Design Flow Comparison

Altera's design flows can be run from either the command line or through the Quartus II GUI. Figure 1 shows the equivalent Altera versus Xilinx executables for a basic command line flow. Table 1 shows Altera's Quartus II tool equivalents for Xilinx ISE software GUI features.

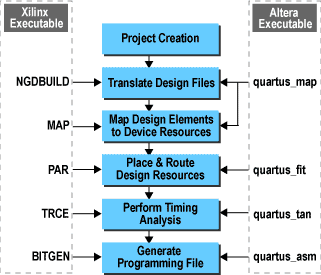

Figure 1. Typical FPGA Design Flow Addressed by Xilinx & Altera Command Line Executables


Table 1. GUI Tool Equivalents in the Quartus II Software for ISE Features


Xilinx ISE

Quartus II

Project Creation

  • New Project
  • New Project Wizard

Design Constraint Assignments

  • Constraints Editor and PACE
  • Quartus II Assignment Editor, I/O Analyzer

Design Entry

  • HDL Editor
  • Schematic Entry
  • CORE Generator
  • HDL Editor
  • Schematic Entry
  • MegaWizard® Plug-In Manager


  • Xilinx Synthesis Technology (XST) or Third-party EDA Synthesis
  • Quartus II Integrated Synthesis (QIS) or Third-Party EDA Synthesis

Fitting and Placing the Design Into the FPGA to Meet the User Requirements

  • Design Implementation: Translate, Map, Place-and-Route
  • Design Compilation: Analysis & Synthesis, Fitter

Static Timing Analysis on Post-Fitted Design

  • Xilinx Timing Analyzer and Trace
  • Quartus II Timing Analyzer

Functional & Timing Simulation

  • Third-Party Simulation Tools
  • Third-Party Simulation Tools or Native Quartus II Simulator

Generation of Device Programming File

  • Bitgen
  • Assembler

Hardware Verification

  • ChipScope Pro
  • SignalTap II

Viewing & Editing Design Placement

  • Floorplanner or FPGA Editor
  • Timing Closure Floorplan, Chip Editor

Customization & Generation of Intellectual Property (IP) Cores Through the GUI

  • Core Generator System
  • MegaWizard Plug-In Manager

Compilation & Assignment Process for Power Users


  • Tcl Scripting

Technique Used to Design, Optimize, and Lock Down Nodes One at a Time

  • Modular Design Flow
  • LogicLock, Netlist Optimization Options

Xilinx ISE Versus Altera Quartus II: Timing Analysis Differences

In general, the Quartus II timing analyzer calculates all possible register-to-register and complex clock structures using worst-case assumptions. Since many of these complex structures are not analyzed by the Xilinx ISE tool, the comparison can unfairly penalize the Quartus II software¡¯s performance. Adjusting the Quartus II settings to perform equivalent timing analysis to that of ISE will ensure that a fair comparison is made by analyzing the same paths in the circuit. For more information regarding timing analysis differences, visit the Timing Analysis Techniques page.

The Performing Equivalent Timing Analysis Between Altera Quartus II & Xilinx ISE White Paper covers the differences in timing analysis between Xilinx ISE and Altera Quartus II software and outlines a procedure on how to set the tools to provide an equivalent performance comparison.

Step-By-Step Design Flow & Conversion Help

To help designers become familiar with the Quartus II software and to target Xilinx designs to Altera devices, Altera offers AN 307: Altera Design Flow for Xilinx Users . This document consists of two parts:

  • Part 1: The Quartus II Approach to FPGA Design - Helps Xilinx designers become familiar with the Quartus II software by showing how to perform a basic FPGA design flow using Quartus II procedures instead of the equivalent Xilinx software procedures.
  • Part 2: Xilinx-to-Altera Design Conversion - Details design file conversion procedures, including:
    • Identifying design hierarchy
    • Converting primitives and IP cores
    • Migrating design constraints
