norf201: 2 INPUT NOR

Gate Level Schematic of the standard cell "norf201".

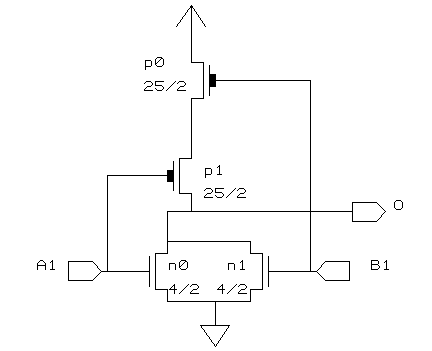

Schematic of the standard cell "norf201" with device sizes in lambda.

Layout of the standard cell "norf201"

here.

Logic Equation: O = (A1 + B1)'

Input(s): A1, B1

Output(s): O

Truth Table

-----------------
A	B	O
-----------------
0	0	1
0	1	0
1	0	0
1	1	0
-----------------

Terminal Location and Capacitance Table

--------------------------------------------
Name	X_loc	Y_loc	   Capacitance (fF)
	lambda  lambda   2U	1.2U	0.8U
--------------------------------------------
A1	27	17	68.5	34.2	28.9
B1	6	17	69.8	34.6	29.4
O	16	19.96	-	-	-
--------------------------------------------

Characterization Data
