4.6.2 LPM_OUTPAD



Copyright © 1998 University of Manchester

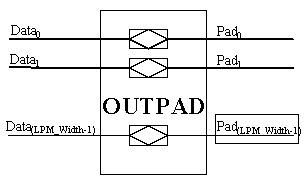

Output Pad

Ports
Port Name
Type
Usage
Description Comments
Data
I
Required
Data for output from pads Vector, LPM_Width wide
Pad
O
Optional
Pads to output data Vector, LPM_Width wide

Properties
Property
Usage
ValueComments
LPM_Width
Required
LPM Value > 0Width of output vector

Function

Pad = Data
