Using time cursors in the Wave window

When the Wave window is first drawn, there is one cursor located at time zero. Clicking anywhere in the waveform display brings that cursor to the mouse location.

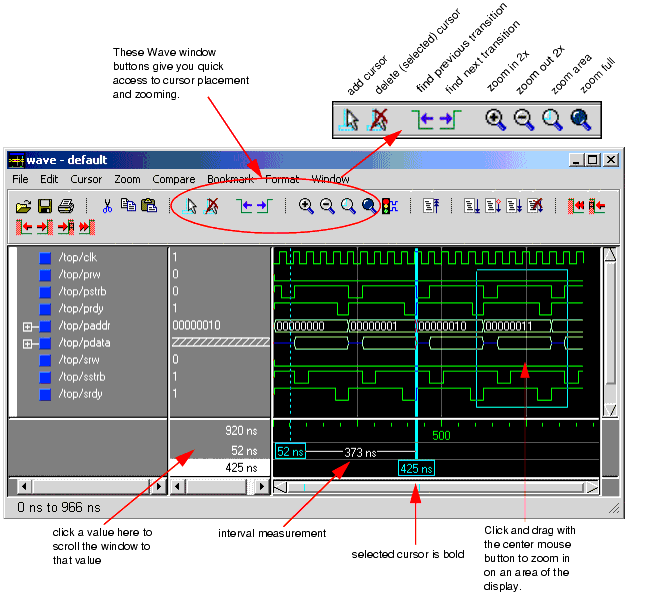

You can add up to 20 cursors to the waveform pane by selecting Cursor > Add Cursor (or the Add Cursor button shown below). The selected cursor is drawn as a bold solid line; all other cursors are drawn with thin dashed lines. Remove cursors by selecting them and choosing using the Cursor > Delete Cursor menu selection (or the Delete Cursor button shown below).

Add Cursor add a cursor to the center of the waveform window

Delete Cursor delete the selected cursor from the window
