Displays information regarding the IOGND Groups in MAX® 7000B devices. This section is omitted if you do not specify a MAX 7000B device for compilation.
Information is provided as follows:
| Heading | Description | Value |
|---|---|---|
| IOGND Group | Shows the IOGND Group in the device. | <group letter> |
| I/O Pins | Shows the total number and percentage of pins used by the specific IOGND Group. | <total pins used> / <total number of pins in IOGND group> (<percentage>) |
| IOGND Current / Current Limit | Shows, in microamperes, the current used by the IOGND Group. | <total current used> / <total current for IOGND group> mA (<percentage>) |

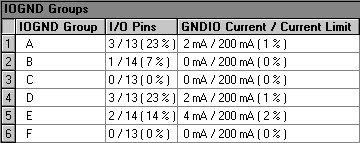

The following example shows a portion of the IOGND Groups section generated for a sample design:
|
