CarryLookahead Adder
Circuit Delays and Timing Simulation
Purpose

To Understand delays in digital circuits

To Learn to use the Timing Simulator

To Design a 16bit carrylookahead adder and measure its delay.
Background: Circuit Delays
Up to now we have been interested in the functional operation of logic
circuits. In the previous labs you used the logic simulator to verify that
the circuits function properly. However, there is one other important aspect
to circuit design: the speed at which it operates. The speed of a digital
circuit is very important, as it will determine the maximum frequency at
which it can work. Let us consider a PC that has a clock frequency of 800
MHz. That means that each 1.25 ns (i.e. period T=1/frequency) the PC will
perform a computation! As we will see, this will require clever circuit
design.
You may ask yourself what determines the speed or the maximum frequency
of a digital system? The answer is the delays of the circuits. There
are several factors that contribute to the delay. One is the propagation
delay due to the internal structure of the gates, another factor is the
loading of the output buffers (due to fanout and net delays),
and a third factor is the logic circuit itself.

Propagation delay
When the input signal of a gate changes, the output signal will
not change instantaneously as is shown in Figure 1 below.
Figure 1: Propagation delay of gates
The propagation delay (or gate delay) of a gate is the time difference
between the change of the input and output signals. There are two types
of gate delays, T_{PHL} and T_{PLH}, as indicated in Figure1.
The value of the propagation delay varies from gate to gate and from logic
family to family. In general the more you are willing to pay for a device
(or chip), the faster it will be. The FPGAs we are using in the lab have
gate delays which vary between 1.5 and 4.5ns. The actual delay depends
on the way the logic gates have been mapped into the LUTs (Look up table)
of a CLB (Configurable Logic Block). The I/O buffers have delays in the
range of 24ns.

Fanout and net delays
The propagation delay described above is caused by parasitic capacitors
inside the gates and the physical limitations of the devices used to build
these gates. Another cause of delay is the capacitor associated with the
loads seen by a gate. These capacitors are the result of the wiring (net
delays) between gates (e.g. a long metal line connecting two gates on a
chip) and the input capacitor of the gates as is shown in Figure 2a.
Figure 2: (a)Parasitic interconnection capacitors and fanout of a gate;
(b) hydraulic equivalent.
These capacitors need to be charged or discharged through the gate that
drives them (e.g. gate 1 in Figure 2a). The more capacitors that need to
be charged or discharged the longer it will take for the output to change.
Also, the longer the interconnection, the more resistance the nets will
have. The easiest way to visualize this is to use a hydraulic equivalent
of a capacitor and a resistor: a bucket filled with water and a narrow
pipe, respectively, as shown in Figure 2b. The more buckets connected to
the drain (i.e. the input inverter), the longer it will take to empty them.
This delay is the result of the fanout of the inverter.

Delay as a result of circuit topography.
Circuits that perform the same function can vary significantly in
their speeds. A good example is an adder circuit. The one you designed
in the previous lab is called a rippleadder and is considerably
slower that a carrylookahead adder or CLA [1,3,4].
Measuring Circuit Delays
The overall speed of a digital system can be measured on an oscilloscope
by comparing the input to the output signals. However, during the design
phase, the circuit has not yet been fabricated and therefore, cannot be
measured. In that case it is possible to determine the delay of circuits
by doing a Timing Simulation. The advantage of a simulation
is that one can also determine the delay of internal nodes of a circuit.
This can be very helpful to understand which nodes or paths are the slowest
and thus limit the overall speed of the circuits. These paths are called
"Critical path". It is important to understand which paths are critical
in a circuit so that one can reduce their delay.
The actual delay will depend on how the gates have been implemented
in the various LUTs and CLBs. Also, the routing of the signals between
the different CLBs determines the overall speed. Thus, one needs first
to implement the design so that one can provide the Timing Simulator
with the block and routing delay information. The Timing Simulator and
the Implementation Tools are described in the tutorials.
Ripplecarry vs. Carrylookahead Adders
One type of circuit where the effect of gate delays is particularly
clear, is an ADDER. In this lab you will be measuring the delay of different
types of adder circuits. The 4bit adder you designed and implemented in
the previous lab is called a ripplecarry adder because the result of an
addition of two bits depends on the carry generated by the addition of
the previous two bits. Thus, the Sum of the most significant bit is only
available after the carry signal has rippled through the adder from the
least significant stage to the most significant stage. This can be easily
understood if one considers the addition of the two 4bit words: 1 1 1
1_{2} + 0 0 0 1_{2}, as shown in Figure 3.
Figure 3: Addition of two 4bit numbers illustrating the generation of
the carryout bit
In this case, the addition of (1+1 = 10_{2}) in the least significant
stage causes a carry bit to be generated. This carry bit will consequently
generate another carry bit in the next stage, and so on, until the final
carryout bit appears at the output. This requires the signal to travel
(ripple) through all the stages of the adder as illustrated in Figure 4
below. As a result, the final Sum and Carry bits will be valid after a
considerable delay. The carryout bit of the first stage will be valid
after 4 gate delays (2 associated with the XOR gate and 1 each associated
with the AND and OR gates). From the schematic of Figure 4, one finds that
the next carryout (C2) will be valid after an additional 2 gate delays
(associated with the AND and OR gates) for a total of 6 gate delays. In
general the carryout of a Nbit adder will be valid after 2N+2
gate delays. The Sum bit will be valid an additional 2 gate delays
after the carryin signal. Thus the sum of the most significant bit S_{N1}
will be valid after 2(N1) + 2 +2 = 2N +2 gate delays. This delay may be
in addition to any delays associated with interconnections. It should be
mentioned that in case one implements the circuit in a FPGA, the delays
may be different from the above expression depending on how the logic has
been placed in the look up tables and how it has been divided among different
CLBs.

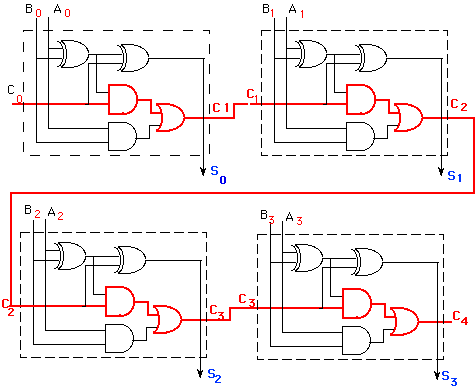

Figure 4: Ripplecarry adder, illustrating the delay of the
carry bit.
The disadvantage of the ripplecarry adder is that it can get very slow
when one needs to add many bits. For instance, for a 32bit adder,
the delay would be about 66 ns if one assumes a gate delay of 1 ns. That
would imply that the maximum frequency one can operate this adder would
be only 15 MHz! For fast applications, a better design is required. The
carrylookahead adder solves this problem by calculating the carry signals
in advance, based on the input signals. It is based on the fact that a
carry signal will be generated in two cases: (1) when both bits A_{i}
and B_{i} are 1, or (2) when one of the two bits is 1 and the carryin
(carry of the previous stage) is 1. Thus, one can write,
C_{OUT} = C_{i+1} = A_{i}.B_{i }+
(A_{i} Å B_{i}).C_{i. }
(1)
The "Å" stands for exclusive OR or XOR.
One can write this expression also, as
C_{i+1} = G_{i} + P_{i}.C_{i
}(2)
in which
G_{i} = A_{i}.B_{i
}(3)
Pi = (A_{i} Å B_{i})
(4)
are called the Generate and Propagate term, respectively.
Lets assume that the delay through an AND gate is one gate delay and
through an XOR gate is two gate delays. Notice that the Propagate
and Generate terms only depend on the input bits and thus will be valid
after two and one gate delay, respectively. If one uses the above expression
to calculate the carry signals, one does not need to wait for the carry
to ripple through all the previous stages to find its proper value. Let’s
apply this to a 4bit adder to make it clear.
C_{1} = G_{0} + P_{0}.C_{0}
(5)
C_{2} = G_{1} + P_{1}.C_{1} = G_{1}
+ P1.G_{0} + P_{1}.P_{0}.C_{0}
(6)
C_{3} = G_{2} + P_{2}.G_{1} + P_{2}.P_{1}.G_{0}
+ P_{2}.P_{1}.P_{0}.C_{0}
(7)
C_{4} = G_{3} + P_{3}.G_{2} + P_{3}.P_{2}.G_{1}
+ P_{3}P_{2}.P_{1}.G_{0 }+ P_{3}P_{2}.P_{1}.P_{0}.C_{0}
(8)
Notice that the carryout bit, C_{i+1}, of the last stage will
be available after four delays (two gate delays to calculate
the Propagate signal and two delays as a result of the AND and OR gate).
The Sum signal can be calculated as follows,
S_{i} = A_{i} Å
B_{i} Å C_{i }= P_{i}Å
C_{i}.
(9)
The Sum bit will thus be available after two additional gate delays (due
to the XOR gate) or a total of six gate delays after the input signals
A_{i }and B_{i }have been applied. The advantage is that
these delays will be the same independent of the number of bits one needs
to add, in contrast to the ripple counter.
The carrylookahead adder can be broken up in two modules: (1) the Partial
Full Adder, PFA, which generates Si, Pi and Gi as defined by equations
3, 4 and 9 above; and (2) the Carry Lookahead Logic, which generates the
carryout bits according to equations 5 to 8. The 4bit adder can then
be built by using 4 PFAs and the Carry Lookahead logic block as shown
in Figure 5.

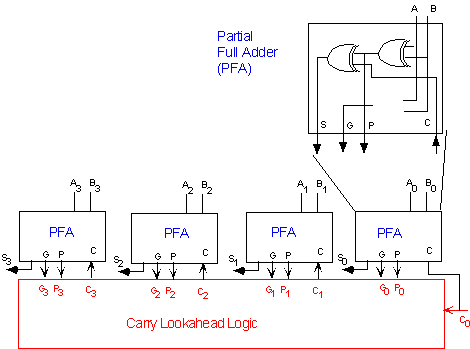

Figure 5: Block diagram of a 4bit CLA.
The disadvantage of the carrylookahead adder is that the carry logic is
getting quite complicated for more than 4 bits. For that reason, carrylookahead
adders are usually implemented as 4bit modules and are used in a hierarchical
structure to realize adders that have multiples of 4 bits. Figure 6 shows
the block diagram for a 16bit CLA adder. The circuit makes use of the
same CLA Logic block as the one used in the 4bit adder. Notice that each
4bit adder provides a group Propagate and Generate Signal, which is used
by the CLA Logic block. The group Propagate P_{G} of a 4bit adder
will have the following expressions,
P_{G} = P_{3}.P_{2}.P_{1}.P_{0}
;
(10)
G_{G} = G_{3}
+ P_{3}G_{2} + P_{3}.P_{2}.G_{1}.
+ P_{3}.P_{2}.P_{1}.G_{0}
(11)
The group Propagate P_{G} and Generate
G_{G} will be available after 3 and 4 gate delays, respectively
(one or two additional delays than the P_{i} and G_{i}
signals, respectively).

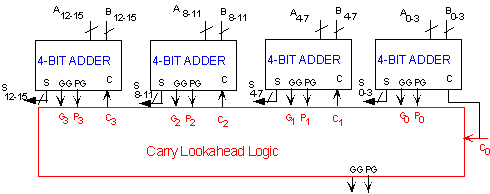

Figure 6: Block diagram of a 16bit CLA Adder
Prelab assignment:

Describe briefly which factors determine the maximum frequency of a digital
circuit.

What is a critical path in a digital circuit?

Read the tutorial on "Timing
Simulation".

Assuming that one delay in a AND and OR gate is 1 gate delay
and in an XOR gate 2 gate delays, determine:

What is the worstcase delay of the Carryout of the onebit Full Adder
circuit of Lab 1

Consider the 4bit adder you designed in the previous lab. Under what conditions
of input signals does the worst case delay occur for the carryout signal?
What is the worst case delay for the carryout (of the last stage)?

What is the worst case delay of signal S2 of a 4bit ripply carry adder?

What is the worst case delay of signal C2 of a 4bit ripply carry adder?

Assume you add two 16bit words up using a ripplecarry adder. Considering
worst case conditions, after how long a delay will the sum (S) be valid?

What is the delay of the Sum bits S0 and S3 of the 4bit carrylookahead
adder in figure 5 above?

What is the delay of the Sum signals S3 and S15 of the 16bit CLA in
figure 6 above?
 Submit your answers online using Blackboard.
Inlab assignment:
A. Parts and Equipment:

PC

Xilinx Foundation Tools F2.1i
B. Experiments:

You will implement a 16bit carrylookahead adder. You will
do this by creating a Partial Full Adder (PFA) macro and a Carrylookahead
Logic macro as shown in Figures 5 and
6.

Create a macro for the Carry LookAhead Logic block. Call this MYCLALOG.
Use VHDL to create this macro. You should also generate the Groups Generate
and Propagate signals, P_{G} and G_{G}, respectively. You
do not need to create the carry C4. Do a simulation, as explained above.

Now you can create a 4bit CLA adder macro. In the schematic editor go
to the TOOLS > SYMBOL WIZARD menu and create the symbol for a Schematic
macro, called MY4CLA. Once the symbol has been created, draw the schematic
for the 4bit adder using the above defined modules of PFA and MYCLALOG.
The adder should have as input A[3:0], B[3:0], and CIN. The outputs are
S[3:0], P_{G}, and G_{G}. Be careful when connecting the
carry signals. Since this schematic will be used as a macro, you do not
need to add input/output buffers and pads. For single signals use a terminal;
and for the buses (ex. A, B and S), define the bus as "input" or
"output" bus (or select End Bus if the terminals have been defined already).

When finished, synthesize the macro and simulate the 4bit adder. Verify
its operation and make a screen caption of the functional simulation waveforms
(only one page).

You are now ready to create the top level schematic of the 16bit carrylookahead
adder. Use the block diagram of Figure 6.

The schematic of the 16bit adder is the top level schematic. All
the input pins (A[15:0], B[15:0], CIN, SOUT[15:0], and COUT) need to be
connected to pads and buffers. Cout is the last carry of the adder, corresponding
to C16 and can be generated from the groups Propagate and Generate signals.

In order to keep the schematic and its interconnections managable, use
buses as much as possible. It may be helpful to use a 16bit wide bus for
input signals A and B. This bus can be split up into segments of 4 bits
that each feeds into the 4bit inputs of each of the 4bit CLA macros.
This can be done by first drawing a 16bit wide bus (e.g. AIN[15:0]). Then
connect the 4bit wide input bus (e.g. A[3:0]) of the first 4bit CLA
to the 16bit wide A bus; next connect the input of the 2nd 4bit CLA to
the same A bus, etc. until all 16 inputs have been connected. Now you need
to specify how the bus signals are connected. This can be done by
giving the bus segment the proper name by clicking on the bus. This will
open the Edit Bus window. Keep the name but change the bus width. For instance,
to specify a 4bit wide bus segment that connects to the input of the first
4bit adder, give it the name AIN and as width [3:0]. It is important that
the name of the bus segment is the same as the name of the 16bit bus.
Do the same for the other bus segments (e.g. AIN[7:4], etc.). For more
information about buses in the Schematic Entry window, select HELP > SCHEMATIC
EDITOR HELP CONTENTS. In the help window select INDEX and type "buses"
or "bus connections".

When done, do a functional simulation and verify that the circuit works
properly. Instead of defining each input signal A0, A1 ... A15, B0,
B1, ... B15 separately, it is more convenient to use the Formulas to define
the input signals of the input buses. See section on Formulas
in the Logic Simulator Tutorial. When the simulation give the right result,
take a screen catpure of the waveforms (again only one page).

When the circuit works properly, you need to implement it so that
you can do a timing simulation later on.

Make sure you added pads and buffers for each input
and output. If you don't add pads, the mapping software will remove all
the logic between input and output "connectors" and your circuit will have
no logic or little logic left!

Before implementing the design, go to the Program
Manager and select the IMPLEMENTATION > IMPLEMENT DESIGN menu (or >OPTIONS
menu). In the Implement Design window click on the Option button.
When the Options window opens, click on the Edit Options button for the
Simulations (Foundation EDIF). In the Simulation Options window, click
on the General Tab and Deselect the option: Correlate Simulation Data
to Input Design.
This will prevent that the timing simulation
will give undefined signals (see also undefined
signals in the timing simulation tutorial).

For the implementation, see previous lab or check the tutorial on Design
Implementation. Use a device speed of 4.

Check the reports and write the results in your lab notebook:

Check the Map Report for the device utilization and the equivalent gate
count. Check if logic has been removed during the mapping step.

Check the Post Layout Timing Report. Find the maximum combinational path
delay and net delay.Between which input pin and output pin does the maximum
delay occur? What is the maximum frequency at which the input signals
can applied without causing erroneous operation of the 16 bit adder?

Timing simulation (Verification): In the Project Manager click on
the Verification (Timing Simulation) icon. This will open the timing
simulator. Do a worstcase simulation of the CLA and determine the delay
of the Sum bits and the Carry out bit COUT. In case you
have problems with the timing simulation and some of the signals are undefined
(gray waveform), see the notes below. You do not need to go through
all the possible input combinations because you have verified that the
circuit works properly by doing a functional simulation above.

Apply input signals A[15:0] and B[15:0] which give a worst case scenario
for the delays of the sum and carryout signals? Measure the delays between
the time the input signal is applied and the sum and carryout signal changes
(use the measurement option in the simulator). Write these numbers down
in your lab notebook. Do they correspond to the ones reported in the Post
Layout Timing report?

When doing the timing simulation, be careful that the period of the stimuli
(i.e. the signals applied to the input) is larger than the longest delay
of the circuit. If your input signal is changing before the output signals
appear (due to the delay), you will get useless and unpredictible results.
You can change the period of the binary counter output (Bc:) by going to
the OPTIONS > PREFERENCES > SIMULATIONS; adjust the Clock Period of B0
to a value larger than the maximum delay (e.g. 50 ns). The input signal
should not change until all the output signals have settled to the proper
value.

Besides the delays of the Sum and Carry signal determine also the delay
of the input and output buffers.

Take a screen capture of the simulation data, including the measurement
data for the delays of the Sum, Carryout and buffer delays (max 2 screens).
Notes:

In case some of the signals show as an undefined signal (gray
in the waveform viewer window or blue X on the schematic) make sure that
you Deselect the option: Correlate Simulation Data to Input
Design in the Implementation Options (Simulations) as explained above
or in the timing
simulation tutorial.

Use the Measurement tool to determine the delay: go to WAVEFORM > MEASURMENT
> MEASUREMENT ON. This will allow you to display the delays.
Handin at the start of next lab:
Lab Report including

Course title, Lab no, Lab section, your name and date.

Section on the lab experiments:

Brief description of the lab including the goals

Copy of the VHDL source code of the macros PFA, MYCLALOG.

Screen capture of the schematic of the 4 bit and 16bit CLA adders

Screen catpure of the funtional simulation of the 4bit CLA adder (label
printouts)

Screen catpure of the timing simulation with measurements16bit carrylookahead
adders.

Summary of the Map (device utilization) and Timing Reports (delays)

Discussion of the measured delays using the Timing simulator.

Maximum frequency at which the 16 bit CLA adder can be used.

Discussion and conclusions.
References:

R. Katz, "Contemporary Logic Design", Chapter 3, sections 3.3.1 and 3.3.2;
Chapter 5, section 5.2

D. Van den Bout, "The Practical Xilinx Designer Lab Book", Prentice Hall,
Upper Saddle River, NJ, 1998.

J. Wakerly, "Digital Design," 3rd edition, Prentice Hall, Upper Saddle
River, NJ, 2000.

M. M. Mano and C. R. Kime, "Logic and Computer Design Fundamentals", 2nd
Ed., Prentice Hall, Upper Saddle River, NJ, 2001.
Go to the Xilinx
Foundation Tutorial
Copyright 1999, Jan Van der Spiegel;
October 15, 1998; Updated by J. Van der Spiegel, October 10, 2001.
