Digital Design Laboratory
Design and Implementation of a 4bit
ALU
Purpose:
The purpose of this lab is:

1. To design a 4bit ALU

2. To implement the ALU on a FPGA or CPLD

3. To experimentally check the operation of the ALU
This lab is different from the other assignments
in the sense that it is a design project which gives you more freedom
to come up with your own solutions. The following writeup serves as a
guideline to help you design the lab. However, if you find more efficient
or more elegant ways to implement parts of the ALU, go ahead. Just make
sure you justify your design and explain it clearly in the lab report writeup.
This assignment is more extensive than previous
ones. It is important that you come well prepared to the lab. You should
have designed the main components of the ALU before coming to the lab.
Your designs need to be written in your lab notebook and signed by the
TA at the start of the lab.
Prelab assignment:
a. Problem Statement:
An Arithmetic and Logic Unit (ALU) is a combinational circuit that performs
logic and arithmetic microoperations on a pair of nbit operands (ex.
A[3:0] and B[3:0]). The operations performed by an ALU are controlled by
a set of functionselect inputs. In this lab you will design a 4bit
ALU with 3 functionselect inputs: Mode M, Select S1 and S0 inputs. The
mode input M selects between a Logic (M=0) and Arithmetic (M=1) operation.
The functions performed by the ALU are specified in Table I.
Table 1: Functions of ALU

M = 0 Logic

S1

S0

C0

FUNCTION

OPERATION (bit wise)

0

0

X

A_{i}B_{i}

AND

0

1

X

A_{i} + B_{i}

OR

1

0

X

A_{i}Å
B_{i}

XOR

1

1

X

(A_{i}Å
B_{i})’

XNOR

M = 1 Arithmetic

S1

S0

C0

FUNCTION

OPERATION

0

0

0

A

Transfer A

0

0

1

A + 1

Increment A by 1

0

1

0

A + B

Add A and B

0

1

1

A + B + 1

Increment the sum of A and B by 1

1

0

0

A + B'

A plus one's complement of B

1

0

1

A  B

Subtract B from A (i.e. B' + A + 1)

1

1

0

A' + B

B plus one's complement of A

1

1

1

B  A

B minus A (or A' + B + 1)

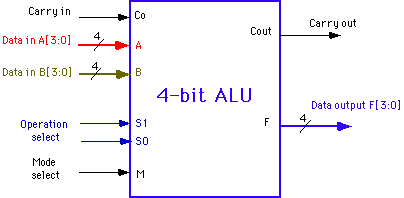

A block diagram is given in Figure 1.
Figure 1: Block diagram of the 4bit ALU.
When doing arithmetic, you need to decide how to represent negative
numbers. As is commonly done in digital systems, negative numbers are represented
in two’s complement. This has a number of advantages over the sign
and magnitude representation such as easy addition or subtraction of mixed
positive and negative numbers. Also, the number zero has a unique representation
in two’s complement. The two’s complement of a nbit number N is
defined as,
2^{n}
 N = (2^{n}  1  N) + 1
The last representation gives us an easy way to
find two’s complement: take the bit wise complement of the number
and add 1 to it. As an example, to represent the number 5, we take two’s
complement of 5 (=0101) as follows,
5 0 1 0 1 > 1 0 1 0 (bit wise complement)
+ 1
1 0 1 1 (two’s complement)
Numbers represented in two’s complement lie within the range (2^{n1})
to +(2^{n1}  1). For a 4bit number this means that
the number is in the range 8 to +7. There is a potential problem
we still need to be aware of when working with two's complement, i.e. over
and underflow as is illustrated in the example below,
0 1 0 0 (=carry Ci)
+5 0 1 0 1
+4 + 0 1 0 0
+9 0 1 0 0 1 = 7!
also,
1 0 0 0 (=carry Ci)
7 1 0 0 1
2 + 1 1 1 0
9 1 0 1 1 1 = +7!
Both calculations give the wrong results (7 instead of +9 or +7
instead of 9) which is caused by the fact that the result +9 or 9 is
out of the allowable range for a 4bit two’s complement number. Whenever
the result is larger than +7 or smaller than 8 there is an overflow or
underflow and the result of the addition or subtraction is wrong. Overflow
and underflow can be easily detected when the carry out of the most significant
stage (i.e. C_{4} ) is different from the carry out of the previous
stage (i.e. C_{3}).
You can assume that the inputs A and B are in two’s complement
when they are presented to the input of the ALU.
b.
Design strategies
When
designing the ALU we will follow the principle "Divide and Conquer" in
order to use a modular design that consists of smaller, more manageable
blocks, some of which can be reused. Instead of designing the 4bit ALU
as one circuit we will first design a onebit ALU, also called a
bitslice. These bitslices can then be put together to make a
4bit ALU.
There
are different ways to design a bitslice of the ALU. One method consists
of writing the truth table for the onebit ALU. This table has 6 inputs
(M, S1, S0, C_{0}, A_{i} and B_{i}) and two outputs
F_{i} and C_{i+1}. This can be done but may be tedious
when it has to be done by hand.
An
alternative way is to split the ALU into two modules, one Logic and one
Arithmetic module. Designing each module separately will be easier than

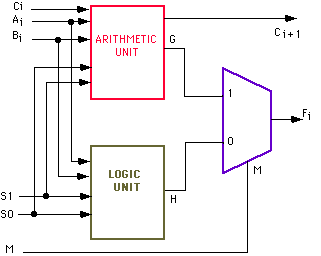

designing a bitslice as one unit. A possible block diagram of the ALU
is shown in Figure 2. It consists of three modules: 2:1 MUX, a Logic unit
and an Arithmetic unit.
Figure 2: Block diagram of a bitslice ALU
c.Displaying
the results. In order the
easily see the output of the ALU you will display the results on the sevensegment
displays and the LEDs (LD).
1.The
result of the logic operation can be displayed on the LEDs
(LD). Use also one of these LEDs to display the overflow flag V.
2.Since
you are working with a 4bit representation for 2's complement numbers,
the maximum positive number is +7 and the most negative number is –8. Thus
a single sevensegment display can be used to show the magnitude of the
number. Use another sevensegment display for the ““ sign (e.g. use segment
“g”).
3.There
is one complication when using more than one of the sevensegment displays
on the Digilab board, as can be seens from the connections
of the LED segments of the displays. You will notice that the four sevensegment
displays share the same cathodes A, B, ..., G). This implies that one cannot
directly connect the signals for the segments of the magnitude and sign
to these terminals, since that would short the outputs of the gates
which would damage the FPGA!. How could you solve this problem? Sketch
a possible solution in your lab notebook. (Hint: You can alternate the
signals applied to the cathodes between those of the Magnitude and Sign
displays. If you do this faster than 30 times per second the eye will not
notice the flickering. You will also need to alternate the anode signals).
What type of circuit will be needed to accomplish this? You can make use
of an onchip clock, called OSC4 that provides clock signals of 8MHz, 500KHz,
590Hz and 15Hz.

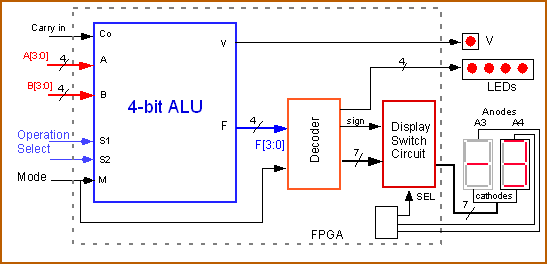

4.Figure
3 shows a schematic of the overall system, consisting of the ALU, Decoder
and Switching circuit, and Displays on the Digilab board.
Figure 3: Overall system, including the 4bit ALU and display units.
d.
Tasks: Do the following tasks prior to coming to the lab. Write
the answers to all questions in your lab notebook prior to coming to the
lab. There is no online submission for the prelab. Ask the TA to sign
prelab section in your lab notebook at the start of the lab session.
You will also need to include answer to the prelab questions in your lab
report.

Design the MUX. You can choose to design the MUX with gates or by
writing HDL (VHDL) code. Choose one of the two methods and write the design
down in your lab notebook.

Design of the Logic unit. Here you also have several choices to
design this unit:
a.
Write truth table, derive the Kmap and give the minimum gate implementation
b.
Use a 4:1 MUX and gates
c.
Write an HDL file
As part of the prelab, you can choose any of the three methods.
Briefly justify why you chose a particular design method. Explain the design
procedure and give the logic diagram or the HDL file. In case you use a
MUX, you need also to give the schematic or the HDL file for the MUX.

Design the arithmetic unit. Again, here you have different choices
to design and implement the arithmetic unit. A particularly attractive
method is one that makes use of previously designed modules, such as your
Full Adder. The arithmetic unit performs basically additions on a set of
inputs. By choosing the proper inputs, one can perform a range of
operations. This approach is shown in Figure 4. The only blocks that need
to be designed are the A Logic and B Logic circuits. You can make use of
your previously designed full adder (MYFA).
Figure 4: Schematic block diagram of the arithmetic unit.

Give the truth tables for the Xi and Yi functions with as inputs S1, S0
and Ai, and S1, S0 and Bi, respectively. Fill out the following tables.
Notice that in definition table I of the ALU, the variable C_{0}
acts as the Carry input. Depending on the value of C_{0}, one performs
the function on the odd or even entries of the definition table I. As an
example the first entry is "transfer A" (for C_{0}=0) while the
second one is "A+1" (for C_{0}=1); Similarly for A + B and A +
B + 1, etc.
S1

S0

Ai

Xi
(A Logic)

S1

S0

Bi

Yi
(B Logic)

0

0

0

.

0

0

0

.

0

0

1

.

0

0

1

.

0

1

0

.

0

1

0

.

0

1

1

.

0

1

1

.

1

0

0

.

1

0

0

.

1

0

1

.

1

0

1

.

1

1

0

.

1

1

0

.

1

1

1

.

1

1

1

.

Table II: Truth tables for the A and B logic circuits.

Give the Kmap for Xi and Yi functions. Find the minimum realization for
Xi and Yi.

Draw the logic diagram for Xi and Yi.

Design the circuit that detects over or underflow.
4.
Design
the decoder for the
sevensegment
displays. Remember that the segments of the display are activelow.
The decoders should be designed in such a way that when the Logic Mode
(M=0) is selected, only the LEDs are active and when the Arithmetic Mode
(M=1) is selected only the sevensegment displays are active.
5.Design
the switching circuit that is needed to use the two sevensegment displays
(see section c3 above).
Inlab
assignment:
A.
Parts and Equipment:

1. PC

2. Xilinx Foundation Tools (available on the PCs in the EE Undergraduate
Lab)

3. Digilab Board

4. Protoboard
B.
Experiments
Your
task is to design and implement the 4bit ALU using the Xilinx Foundation

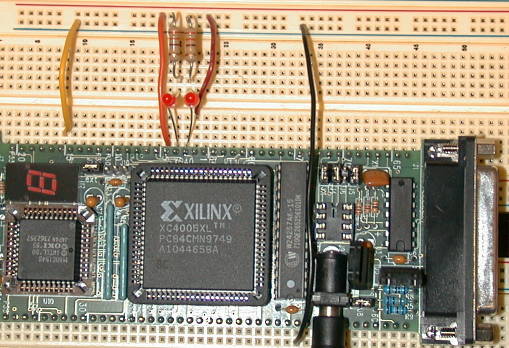

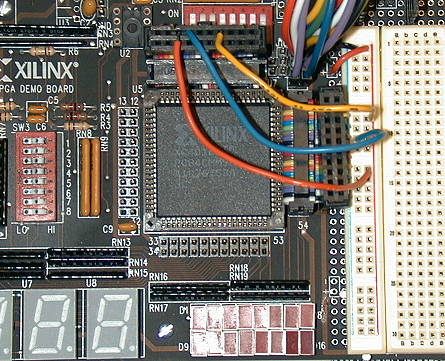

tools and one of the prototyping boards (Digilab board, FPGA demoboard,
the XS40 or XS95 boards). Follow the guidelines of the prelab in designing
the 4bit ALU. You will create a project (see tasks below) with a toplevel
schematic that consists of the 4bit ALU. This toplevel file will
have several macros which you need to create using the Schematic editor
or VHDL. Macros can have macros embedded in it.
As
this project is more complicated than earlier projects, it will be important
that you be very systematic during the design. Each macro should be simulated
and errors corrected before you proceed. Failing to do so will make it
difficult to debug the system.
Task
1:

Create a new project in the schematic flow mode: Name it MY4ALU. Place
this project in your folder (with your name) on the C:drive.

Open the schematic editor (the sheet should have the same name as the project:
MY4ALU1.sch). This will be your top level schematic. (Note: Every time
you open a new sheet it will be named MY4ALU2.sch, MY4ALU3.sch; all these
sheets are part of the toplevel schematic. You should use multiple sheets
only when your toplevel schematic is so large that it does not fit on
a single sheet).

Create macros for each module (carefully read the section on "Creating
Macros" in the Xilinx Tutorials  do not use the top sheet as a macro!).
This can be done in the Schematic Editor window by selecting TOOLS > SYMBOL
WIZARD.

Define the underlying source files for the macros.

Do a functional simulation
of the macros (place them on the top level schematic first).
Verify the proper operation before proceeding to the next step. This will
make debugging much easier. If you find errors in the simulated waveform,
debug the circuit. Check your schematic or HDL code. Remember that names
of HDL macros should have a maximum of 8 characters. When checking the
schematic, use the Probes to add signals (net names) to the simulator Window.
This will help you trace the error in a systematic way.

Make the bit slice (this should be a macro containing several sub macros)

Make the 4bit ALU.

Design and add the circuit that detects overflow V to your schematic.

Simulate the full 4bit ALU and verify that all logic and arithmetic operations
function properly.
Task
2: Inputs and outputs

This task will depend somewhat on the type of board you are planning to
use.

If you are using the Digilab board:

For the A and B inputs, use the general purpose slide
switches SW18.

For the Select and Mode inputs (M, S1, S0 and Cin), you will need to use
a short wire that you connect between the corresponding pin of the FPGA
and the Vdd or Ground to make the signal “1” or “0”, respectively. Use
the following colors: Cin: yellow; M: Red; S1: Blue and S0: Black). Check
the pins
of the Spartan FPGA (XS10XL) to find which pins are available for inputs.

The result of the logical operations can be displayed on the LEDs
(LD). Use also one of these LEDs to indicate when overflow occurs.

The results of the arithmetic operations are displayed on two sevensegment
displays (one for the sign and one for the magnitude). As explained in
the prelab, this will require the insertion
of the switching circuit between the decoder and the displays.

Can you also display the decimal values of the inputs A and B when used
for arithmetic operations?

Use the 7segment
display U8 to show the result of the arithmetic operation and the
LED bar indicator for the logic operations. The sign can be shown on
one of the LED segments (e.g. "g") of the second 7segment display U7.
Design the decoders such that in when you select the arithmetic mode (M=1),
only the 7segment LEDs are active and when in the logic mode (M=0), only
the LED bar indicator is active. The overflow/underflow bit can be shown
on the bar LED. Design and simulate the decoders for the displays.
Add them to the schematic.

For the A and B inputs, use the input switches SW3
on
the demoboard.

For the select inputs (Cin, M, S1 and S0) you will need to use a short
wire connected to an input of the FPGA and your protoboard. You can connect
this wire on the protoboard to ground or 5V depending on the state of the
inputs. Check the pin out of the
FPGA to find which pins are available for inputs. For a picture
of the demoboard with protoboard, click here.

Make a list of all the inputs and outputs and assign pin numbers to them.

In case you are using the XS40 board,
you have only one 7segment display available.

You can use this to display both the arithmetic the logic operations
(e.g. segments
"b", "c", "e" and "f"), depending on the value of the mode bit, M. For
the sign, and the overflow/underflow bit you can use external LEDs connected
between one of the available pins of the FPGA (e.g. pins
3, and 4) and the ground (pin 52). This will require that you place
the XS40 board on a protoboard. Notice that the current in the diode needs
to be limited by placing a resistor of about 330 Ohm in series with the
diode. Design and simulate the decoders for the displays. Add them to the
schematic.

The inputs A and B are applied through the parallel port. Remember that
for the parallel port
D3 and D4, you will need to use the special purpose pads MD0 and MD2, respectively
(D3 and D4 are connected to pins 32 and 34 on the XS40 board).

For the mode bit, M, the select bits, S1 and S0, and the Cin signal
you will need to use a short wire connected to the proper input pins of
the FPGA and ground or Vdd. The easiest would be to place the XS40 board
on a protoboard to make these connections. . Check the pin
out of the FPGA to find which pins are available for inputs. Click
here for a picture showing some of the connections
using a protoboard.

Make a list of all the inputs and outputs and assign pin numbers to them.

For the XS95 board there is only
one 7segment display available.

You can use this to display both the arithmetic, the logic operations (e.g.
segments
"b", "c", "e" and "f"), depending on the value of the mode bit, M. The
decimal point can be used to indicate the sign. To show the overflow/underflow
bit, you will need to use an external diode between one of the available
pins (e.g. pin 4) of the CPLD and the ground. In order the limit the
current in the diode you need to add a resistor of about 330 Ohm in series
with the diode. In this case you will need to place the XS95 board on a
protoboard to get easy access to the pins. Design and simulate the decoders
for the displays. Add them to the schematic.

The inputs A and B are applied through the parallel
port.

For the mode bit, M, the select bits, S1 and S0, and Cin, you will need
to use a short wire connected to the proper input pins of the CPLD and
ground or Vdd. The easiest would be to place the XS95 board on a protoboard
to make these connections. . Check the pin
out of the CPLD to find out which pins are available for inputs. Click
here for a picture showing some of the
connections using a protoboard.

Make a list of all the inputs and outputs and assign pin numbers to them.

Specify the pin location (using the constraint editor or on the schematic),
implement and test the ALU.

It will be instructive to do a timing simulation to get an idea about the
overall speed of the circuit.

Give a demo to the lab instructor and convince him/her that your
ALU works properly. The instructor will sign off your lab notebook.
When working on Xilinx, keep the project on the hard disk. At the
end of the lab you should copy your project back to a directory on your
account for future use. If the file is too large, you can easily
zip it by going to the Project Manager winder and selecting FILE> ARCHIVE
PROJECT. This will zip the entire project with all the necessary project
libraries.
Handin
You have to hand in a lab report that contains the following:
1.
Course Title, Lab no, Lab title, your name and date
2.
Section on the Prelab explaining the design of each block and giving the
answers to each task.
3.
Section on the lab experiment:
a.
Brief description of the goals.
b. Brief explanation of the design approach, the overall schematic
and of each macro.
c. Copy of the schematics and HDL source code (as a screen capture).
Label the schematics and comment on the source code.
d. Logic simulation (screen capture of the waveforms; label the outputs
to prove that the circuit functions properly).
e. Discussion of the results indicating that the circuit functions
properly.
4.
Conclusion and discussion.
The
lab report is an important part of the laboratory. Write it carefully,
be clear and well organized. It is the only way to convey that you did
a great job in the lab. It is preferred (but not necessary) that you type
the lab report.
References:
1.
M. Mano and C. Kime, "Logic and Computer Design Fundamentals", 2^{nd}
Edition, Prentice Hall, Upper Saddle River, NJ, 2001.
2.
R. Katz, "Contemporary Logic Design", Benjamin/Cummings Publ., Reading,
MA, 1994.
3.
J. Wakerly, "Digital Design", 3^{rd} Edition, Prentice Hall, Upper
Saddle River, 2000.
